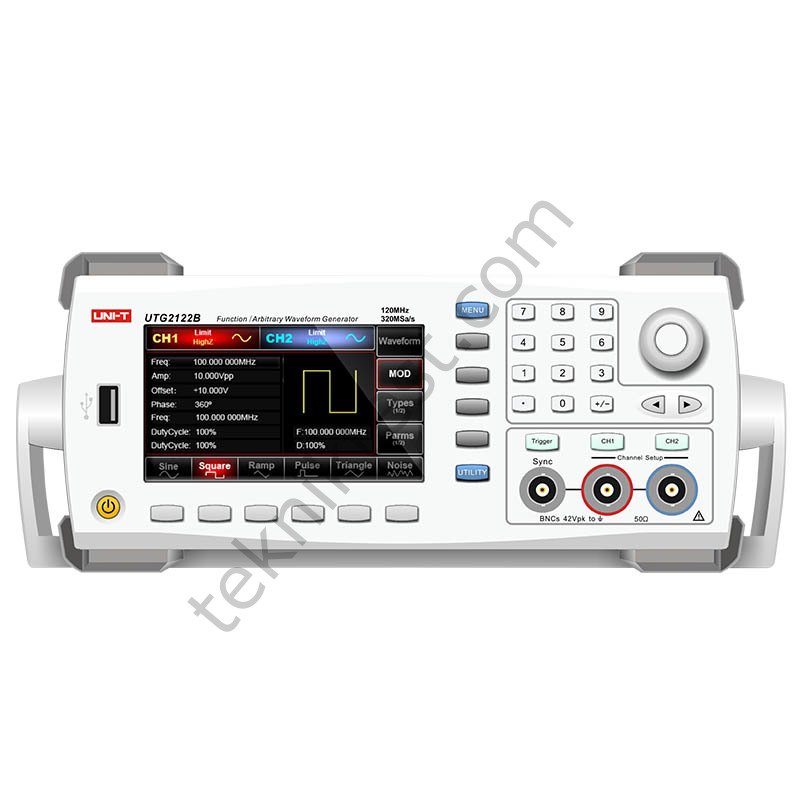

Uni-t UTG2122B Function/Arbitrary Waveform Generator
Ürüne Genel Bakış:
UTG2000B series can produce high precision, stable, pure and low distortion signals; provide high frequency square wave with quick rise and fall edges. Users can improve their working efficiency by using the multifunctional instrument of easy operated interface, competitive specifications and humanized graphical display.
Applications:
Designing, testing, troubleshooting, and repairing of electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television and radio systems; semiconductor component testing etc.
Ürünün Genel Özellikleri:
1. 1μHz full-band resolution
2. 5MHz~30MHz pulse waveform, adjustable rise/fall time
3. 14-bit/16-bit vertical resolution
4. Two equivalent-performance channels
5. Max arbitrary waveform length of 8k/16M points; 48/161
6. non-volatile waveforms storage
ÜrününTeknik Özellikleri:
| Specifications | UTG2122B |
| Max frequency | 120MHz |
| Channels | 2 |
| Sampling rate | 320MS/s |
| Waveforms | Sine, square, ramp, pulse, noise, DC, arbitrary; UTG2000B only: harmonic |
| Working modes | Output on/off, continuous, modulation, sweep, burst |
| Modulations | AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM |
| Arbitrary Waveform | |
| Length | 8pts~16Mpts |
| Vertical resolution | 16 bits (symbol included) |
| Frequency Characteristics | |
| Sine | 1μHz~60MHz |
| Square | 1μHz~25MHz |
| Pulse | 1μHz~20MHz |
| Ramp | 1μHz~3MHz |
| Harmonic | 1μHz~30MHz |
| Arbitrary | 1μHz~15MHz |
| Noise | 60MHz (-3dB) |
| Resolution | 1μHz |
| Accuracy | ±0.5ppm 25℃ |
| First year aging rate: 1ppm | |
| Temperature coefficient: ±0.5ppm/℃ | |
| Temperature Coeifficient | ＜2ppm/℃ |
| Interfaces | USB Host, USB Device, 10MHz clock source input/output |
| General Characteristics | |
| Power | 100V~240V ACrms, 50Hz/60Hz |
| Display | 4.3-inch TFT LCD, WVGA (480 x 272) |
| Product color | White and grey |
| Product net weight | 3.2kg |
| Product size | 265mm x 110mm x 320mm |
| Standard accessories | BNC-BNC cable, BNC cable with alligator clips, power cord, USB interface cable |
| Standard individual packing | Carton box |
Ürün Karşılaştırma Tablosu
| Specifications | UTG2062B | UTG2082B | UTG2122B |
| Max frequency | 60MHz | 80MHz | 120MHz |
| Channels | 2 | ||
| Sampling rate | 320MS/s | ||
| Waveforms | Sine, square, ramp, pulse, noise, DC, arbitrary; UTG2000B only: harmonic | ||
| Working modes | Output on/off, continuous, modulation, sweep, burst | ||
| Modulations | AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM | ||
| Arbitrary Waveform | |||
| Length | 8pts~16Mpts | ||
| Vertical resolution | 16 bits (symbol included) | ||
| Frequency Characteristics | |||
| Sine | 1μHz~60MHz | 1μHz~80MHz | 1μHz~120MHz |
| Square | 1μHz~25MHz | 1μHz~25MHz | 1μHz~30MHz |
| Pulse | 1μHz~20MHz | 1μHz~25MHz | 1μHz~30MHz |
| Ramp | 1μHz~3MHz | 1μHz~4MHz | 1μHz~5MHz |
| Harmonic | 1μHz~30MHz | 1μHz~40MHz | 1μHz~60MHz |
| Arbitrary | 1μHz~15MHz | 1μHz~20MHz | 1μHz~25MHz |
| Noise | 60MHz (-3dB) | 80MHz (-3dB) | 120MHz (-3dB) |
| Resolution | 1μHz | ||
| Accuracy | ±0.5ppm 25℃ | ||
| First year aging rate: 1ppm | |||
| Temperature coefficient: ±0.5ppm/℃ | |||
| Temperature Coeifficient | ＜2ppm/℃ | ||
| Interfaces | USB Host, USB Device, 10MHz clock source input/output | ||
| General Characteristics | |||
| Power | 100V~240V ACrms, 50Hz/60Hz | ||
| Display | 4.3-inch TFT LCD, WVGA (480 x 272) | ||
| Product color | White and grey | ||
| Product net weight | 3.2kg | ||
| Product size | 265mm x 110mm x 320mm | ||
| Standard accessories | BNC-BNC cable, BNC cable with alligator clips, power cord, USB interface cable | ||
| Standard individual packing | Carton box | ||
