Specifications
Range

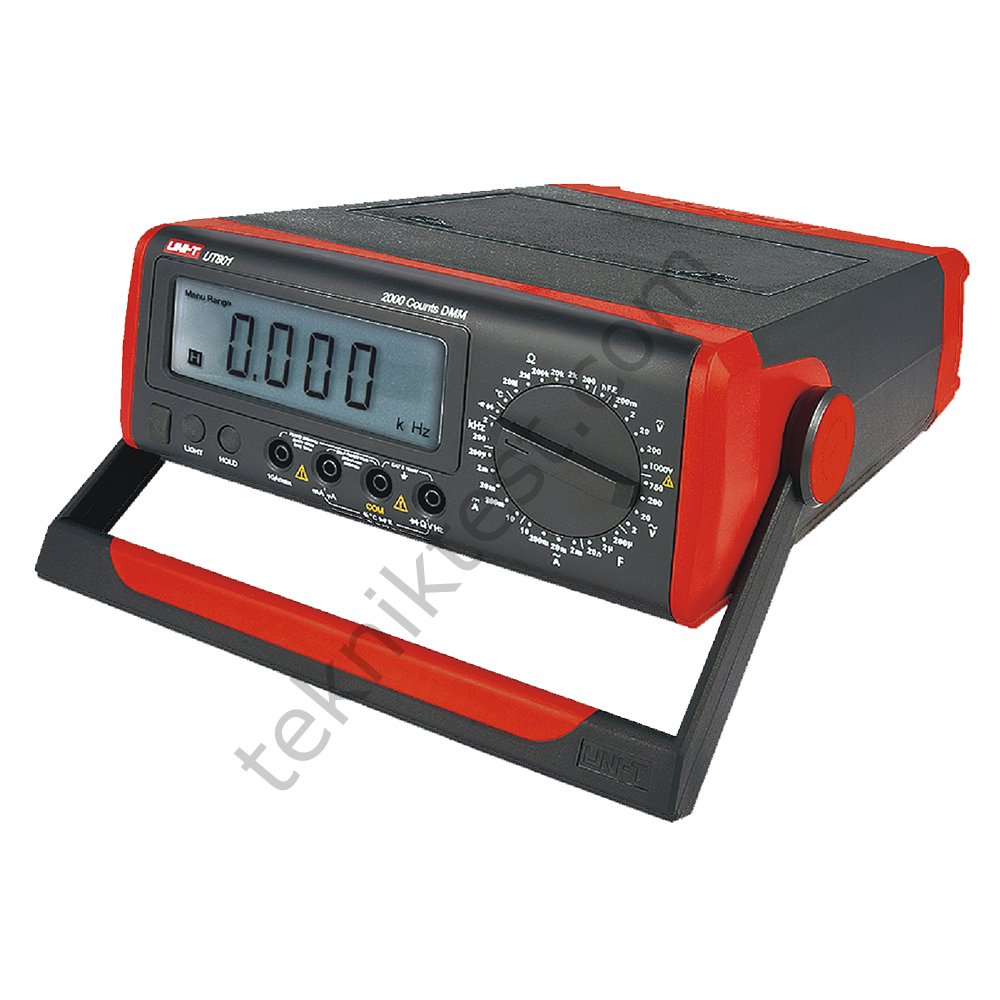

UT801
DC voltage (V)
200mV/2V/20V/200V/1000V
±(0.5%+2)
AC voltage (V)
2V/20V/200V/750V
±(0.8%+3)
DC current (A)
200μA/2mA/20mA/200mA/10A
±(0.8%+2)
AC current (A)
2mA/20mA/200mA/10A
±(1.0%+3)
Resistance (Ω)
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Capacitance (F)
20nF/2μF/200μF
±(4%+3)
Frequency (Hz)
2kHz/200kHz
±(1.5%+5)
Temperature (°C)
-40°C~1000°C
±(1.2%+3)
Features
Display count
2000
Auto/Manual range
Manual
Diode/Transistor
√
Continuity buzzer
Low battery indication
Data hold/LCD backlight
Misoperation alarm
General Characteristics
Power
AC 220V/50Hz or 1.5V batteries (R14) x 6
Display
108mm x 34.5mm
Product color
Red and grey
Product net weight
1.65kg
Product size
300mm x 245mm x 105mm
Standard accessories
Test lead, alligator clip, point contact temperature probe, multi-purpose socket; power adapter, RS-232 interface cable, USB interface cable
Standard individual packing
Carton box, English manual
Standard quantity per carton
4pcs
Standard carton measurement
680mm x 365mm x 320mm
Standard carton gross weight
8.6kg
