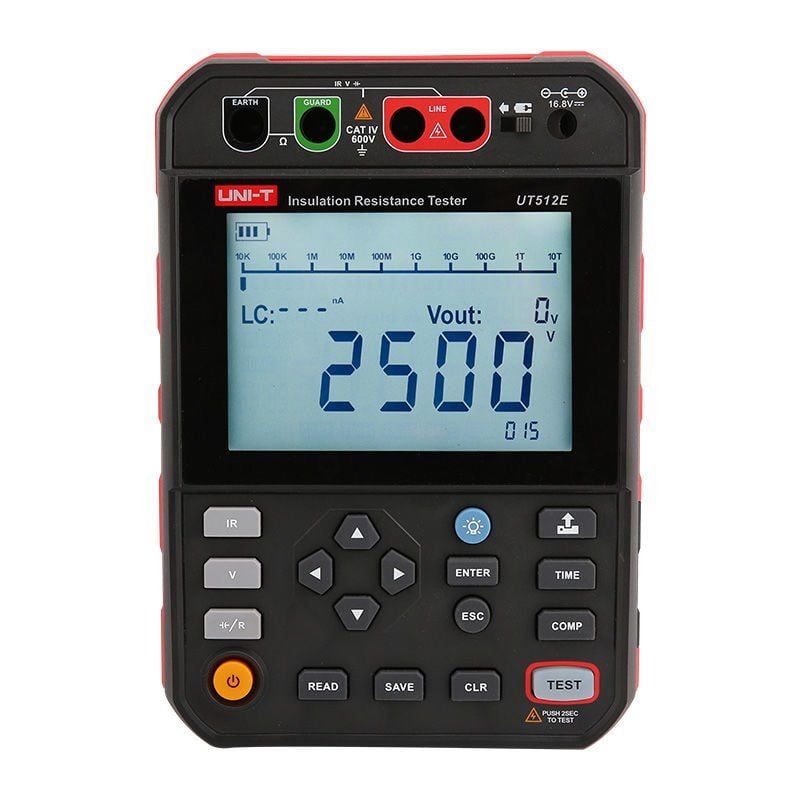

UNİ-T UT512E 2.5kV İzolasyon Megeri
%10
11.949,56 TL
13.277,29 TL
Marka
Fiyat
315,00 USD + KDV
* 1.165,08 TL den başlayan taksitlerle!!
UT512E GENEL BAKIŞ :

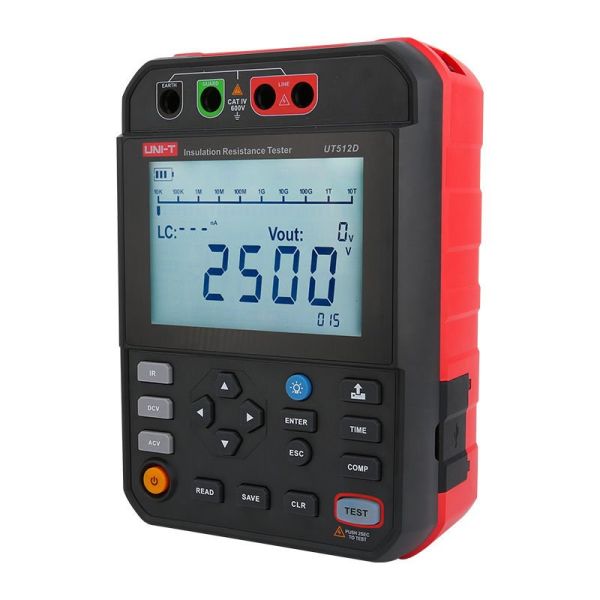

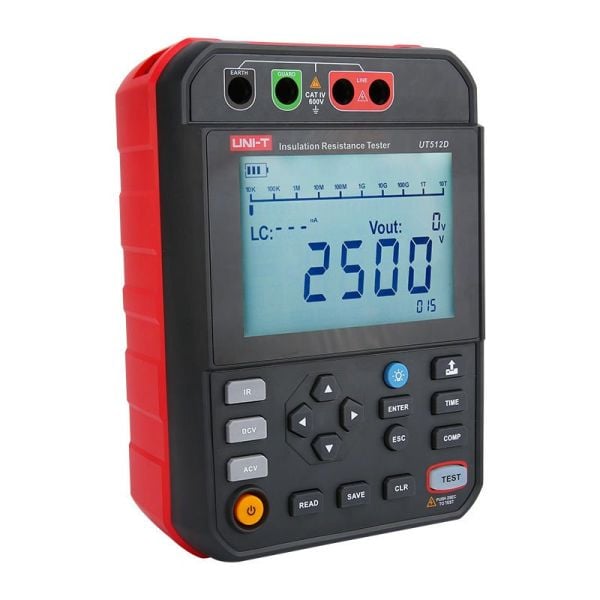

UT512D/UT512E, 250V, 500V, 1000V, 2500V dahil olmak üzere birden fazla aralıkla tasarlanmış dijital yüksek voltaj yalıtım direnci test cihazıdır. Sanayi ve madencilik işletmelerinin elektrik enerjisi, telekomünikasyon, meteoroloji, makine odası, petrol sahası, elektromekanik kurulum ve bakım ve güç kaynağı departmanı için ideal bir ölçüm cihazıdır.
UT512E GENEL ÖZELLİKLERİ :
● Çıkış voltajı aralığı: 2,5KV'ye kadar
● PI/DAR ölçümü
● Kısa devre akımı ölçümü
● Otomatik kaçak akım ekranı
● Adım voltajı: aralığın %10'u
● Yüksek voltaj alarmı
● Otomatik deşarj
● Veri depolama: 999 set
● PC yazılım analizi: USB kablosuyla
● Aşırı gerilim kategorisi: CAT IV 600V
UT512E TEKNİK ÖZELLİKLERİ :
| Rated voltage | UT512D | UT512E | Accuracy |
| 250V | <0.25MΩ | <0.25MΩ | reference only |
| 0.25MΩ～4.99GΩ | 0.25MΩ～4.99GΩ | ±(5%+5) | |
| 5.00GΩ～24.9GΩ | 5.00GΩ～49.9GΩ | ±(20%+10) | |
| 25.0GΩ～100GΩ | 50.0GΩ～250GΩ | reference only | |
| 500V | <0.50MΩ | <0.50MΩ | reference only |
| 0.50MΩ～9.99GΩ | 0.50MΩ～9.99GΩ | ±(5%+5) | |
| 10.0GΩ～49.9GΩ | 10.0GΩ～99.9GΩ | ±(20%+10) | |
| 50.0GΩ～200GΩ | 100GΩ～500GΩ | reference only | |
| 1000V | <1.00MΩ | <1.00MΩ | reference only |
| 1.00MΩ～19.9GΩ | 1.00MΩ～19.9GΩ | ±(5%+5) | |
| 20.0GΩ～99.9GΩ | 20.0GΩ～199GΩ | ±(20%+10) | |
| 100GΩ～400GΩ | 200GΩ～1.00TΩ | reference only | |
| 2500V | <2.50MΩ | <2.50MΩ | reference only |
| 2.50MΩ～49.9GΩ | 2.50MΩ～49.9GΩ | ±(5%+5) | |
| 50.0GΩ～249GΩ | 50.0GΩ～499GΩ | ±(20%+10) | |
| 250GΩ～1.00TΩ | 500GΩ～2.50TΩ | reference only | |
| Capacitance test | NA | 0.01uF～2.0uF | ±（15%+3） |
| Low resistor test | NA | 0.1Ω～600Ω | ±（2%+10） |
| Output voltage(Rating) | stepping voltage range | Step by 10% of each range each time, and adjust the voltage range to 50%~120% of each range； Display accuracy：±(10% read+10V) Output accuracy：±(0%～20%) |
|
| 250V | 350V, 275V, 300V | ||
| 500V | 300V, 350V, 400V, 450V, 500V, 550V, 600V | ||
| 1000V | 500V, 600V, 700V, 800V, 900V, 1000V, 1100V, 1200V | ||
| 2500V | 1250V, 1500V, 1750V, 2000V, 2250V, 2500V | ||
| DC voltage | 30～1000VDC | ±(3%+5) | |
| AC voltage | 30～750VAC 50Hz/60Hz |
±(3%+5) | |
| Current | 0.01nA～3.5mA | 0.01nA～5mA | |
| Short-circuit current | about 3.5mA | about 5mA | |
| Features | |||
| PI test | automatic display | √ | |
| DAR test | automatic display | √ | |
| Timing measurement | √ | ||
| Resistance comparison | √ | ||
| Monitoring function | Monitor the voltage of measured object and the discharge state after testing. | √ | |
| Timer testing | Record testing time automatically. Timing range: 0s～99m and 59s |
√ | |
| Storage function | 999 sets | ||
| Data transmission | Upload testing data to computer via USB cable. | √ | |
| Low Battery indication | √ | ||
| Auto power off | √ | ||
| Dimensions | 238 * 166 * 90.5mm | ||
| CAT rating | CAT Ⅳ 600V | ||
| Certificates | CE/UKCA | ||
| General Characteristics | |||
| Power supply | 8 * LR14 Alkaline battery | UT512D | |
| 14.8V,5200mAh lithium battery | UT512E | ||
| Product Color | Black+Red | ||
| Product Weight | About 1800g (including battery) | ||
| Accessories | User manual 1 pc; Test lead (red, black, green: 1 for each) 3 pcs; USB cable 1 pc; Lithium battery charger (Output: 16.8Vdc, 2A) 1 pc (UT512E only); Lithium battery pack (14.8V, 5200mAh) 1 pc (UT512E only); Adapting charging stand (optional, model: UT-W12, for UT512E only); 8 PCS LR14 alkaline batteries (UT512D); Carrying strap 1pc | ||
| Standard package | Case + carton | ||
| Package quantity | 1pcs | ||
| Package Size | 238 x 166 x 90.5mm(L*W*D) | ||
| ÖLÇÜM ARALIĞI | : | 2500 V |
