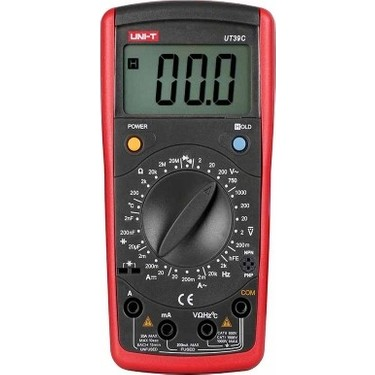

Uni-t UT39C Dijital Multimetre
● Diyot testi
● Veri tutma
● Otomatik kapanma
● Düşük pil göstergesi
|
Specifications |
Range |
UT39C |
|
DC voltage |
200mV/2V/20V/200V/1000V |
±(0.5%+1) |
|
AC voltage |
2V/20V/200V/750V |
±(0.8%+3) |
|
DC current |
2mA/200mA/20A |
±(0.8%+1) |
|
AC current |
2mA/200mA/20A |
±(1%+3) |
|
Resistance |
200Ω/2kΩ/20kΩ/2MΩ/20MΩ |
±(0.8%+1) |
|
Capacitance |
2nF/200nF/20uF |
±(4%+3) |
|
Temperature |
-40~1000°C |
±(3%+10) |
|
Frequency |
2kHz~20kHz |
±(1.5%+5) |
|
Features |
||
|
Max display |
1999 |
|
|
Manual range |
√ |
|
|
Diode test |
√ |
|
|
Buzzer continuity |
√ |
|
|
Transistor |
√ |
|
|
Data hold |
√ |
|
|
Auto power off |
√ |
|
|
Low battery indication |
√ |
|
|
Input protection |
√ |
|
|
Input imepdance for DCV |
Around 10MΩ |
|
|
General Characteristics |
||
|
Power |
9V NEDA 1604/6F22/006P |
|
|
Standard accessories |
Test leads, battery, rubber case, English manual, point contact temperature, probe |
|
|
Product size |
172×83×38mm |
|
|
Product weight |
310g (battery included) |
|
