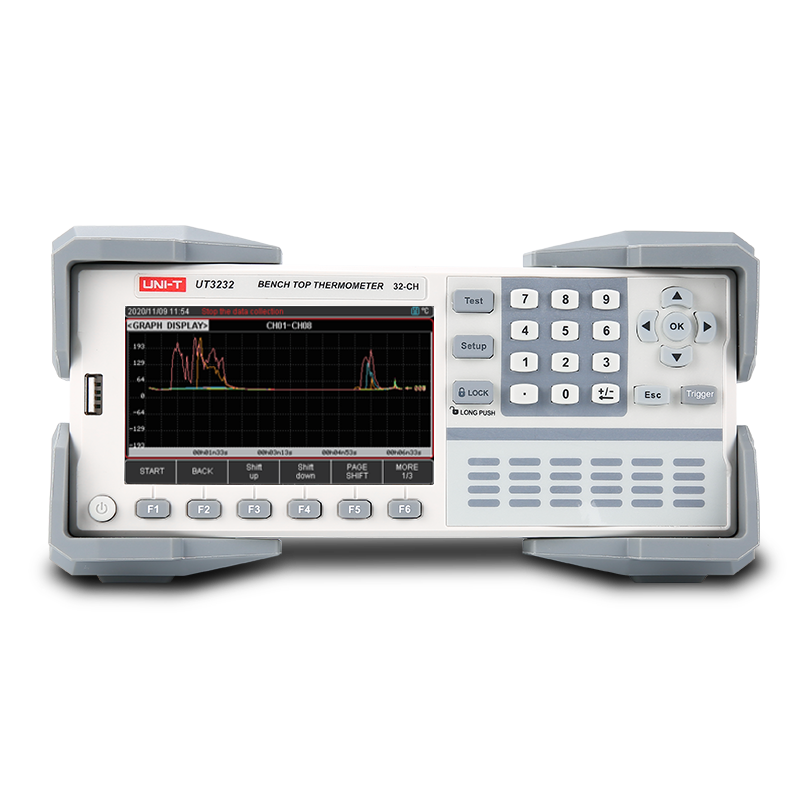

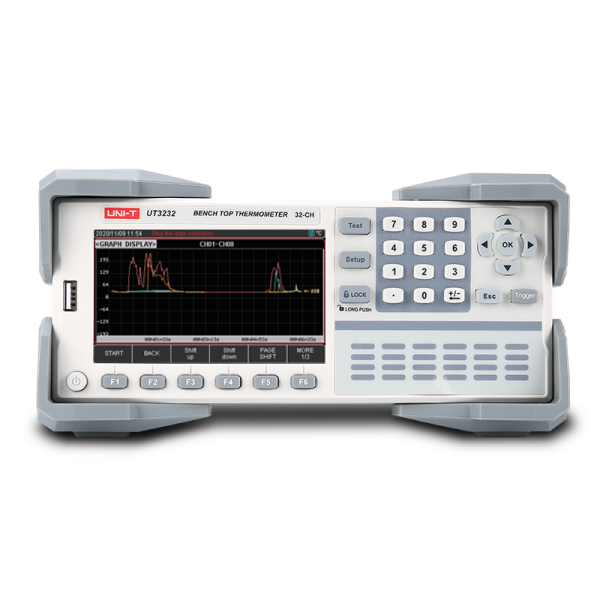

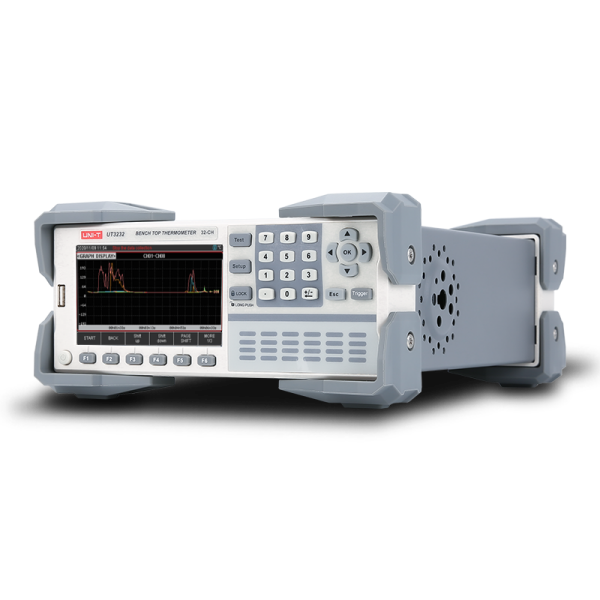

Uni-t UT3232 Çok Kanallı Sıcaklık Kaydedici
Ürüne Genel Bakış :
The UT3200 Series Multi-channel Temperature Loggers contain 4 models:
UT3208,UT3216,UT3224 and UT3232.
which corresponds with thermocouple testing channels of 8, 16, 24 and 32.
With 4.3-inch LCD screen, this Series is compatible with multiple temperature sensors,
can collect multichannel temperature data simultaneously.
The UT3200 Series has have advantages of upper/lower limit alarm, fast respond,
stable data transmission and thermocouple short-circuit detection.
Ürünün Genel Özellikleri :
32-channel output, a variety of probes are available
32CH output,Thermocouple input: J, K, T, E, S, N, B, R,standard K-type probe
Rich display function
With intuitive readings, curve graph display, bar graph display
Upper and lower limit discrimination display
The temperature upper and lower limit over-limit alarm can be set,
and the over-limit reading color change warning can be set,
the upper and lower limits can be set for each channel of temperature data.
Ürünün Teknik Özellikleri:
8/16/24/32
CHANNELS
-200℃~1800℃
TEMPERATURE RANGE
0.1℃
RESOLUTION
2 times/s
SCANNING SPEED
J,K,T,E,S,N,B,R
THERMOCOUPLE
RS-232、USB Device
CONNECTIVITY
½ 2U
SIZE
4.3'' TFT LCD
DISPLAY
