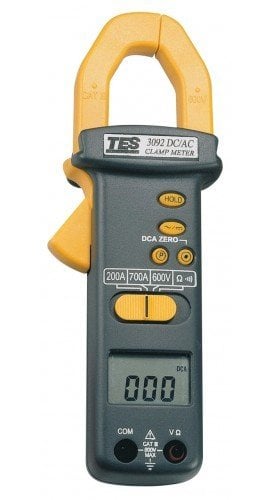

TES 3092 AC DC PENS AMPERMETRE
Ürünün Genel Özellikleri :
- Compact Size.
- AC/DC Current Measurement (AC 700A / DC 800A).
- 600 V AC & 200V DC, Ohm / Continuity Beeper.
- One Touch DCA Zero
DC Current
|
Range |
Resolution |
Accuracy |
Overload protection |
|
200A |
0.1A |
±( 1.5%rdg + 2dgts) |
850Arms |
|
800A |
1A |
AC Current
|
Range |
Resolution |
Accuracy |
Frequency Range |
Overload protection |
|
200A |
0.1A |
±( 2%rdg + 4dgts) |
50 ～ 400Hz |
850Arms |
|
700A |
1A |
q DC Voltage
|
Range |
Resolution |
Accuracy |
Input Impedance |
Overload protection |
|
200V |
0.1V |
±(1%rdg + 1dgts) |
1MΩ |
600Vrms |
q AC Voltage
|
Range |
Resolution |
Accuracy |
Frequency Range |
Input Impedance |
Overload protection |
|
600V |
1V |
±(1.5%rdg +4dgts) |
50 ～ 400Hz |
1MΩ |
600Vrms |
q Ohms (Resistance)
|
Range |
Resolution |
Accuracy |
Overload protection |
|
2KΩ |
1Ω |
±( 1%rdg+ 2dgts) |
600Vrms |
q Continuity beeper
|
Range |
Sound Level |
Max Open Circuit Voltage |
Overload protection |
|
|
≦30Ω |
3V |
600Vrms |
GENERAL SPECIFICATIONS
|
Numerical Display |
3-1/2 digit liquid crystal display (LCD) maximum reading 1999. |
|
Over Range Indication |
LCD will show an " ". |
|
Low Battery Indication |
LCD will show an " ”. |
|
Power Source |
One 9V battery (006P or IEC6F22) |
|
Battery Life |
100hr approx. |
Operating Temperature and Humidity |
0°C to 50°C (32°F to 122°F) below 80%RH. |
|
Dimensions & Weight |
192(L) x 64(W) x 31(H)mm & Approx. 240 g |
|
Jaw Opening Diameter |
Cables 27 mm |
|

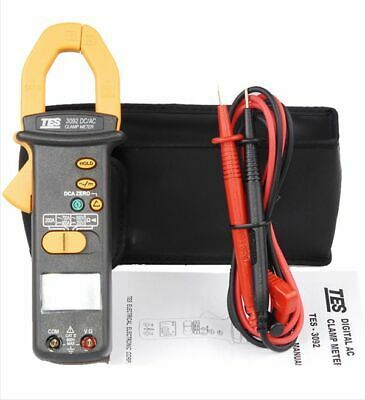

Accessories |
Carrying case, Battery, Instruction manual & Test lead. |
