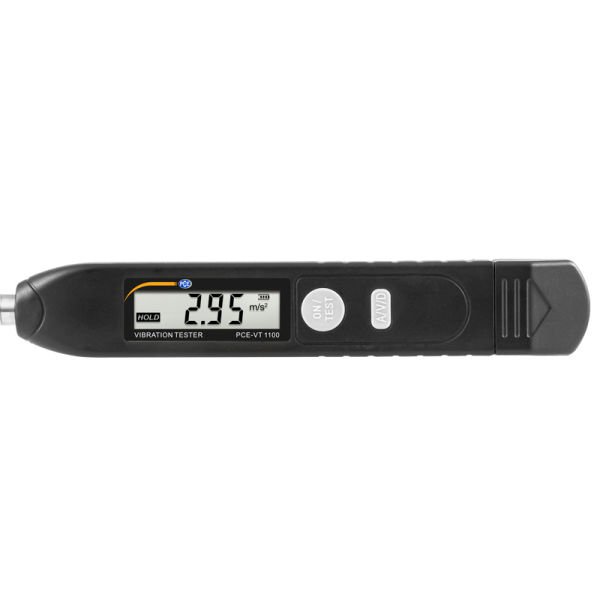

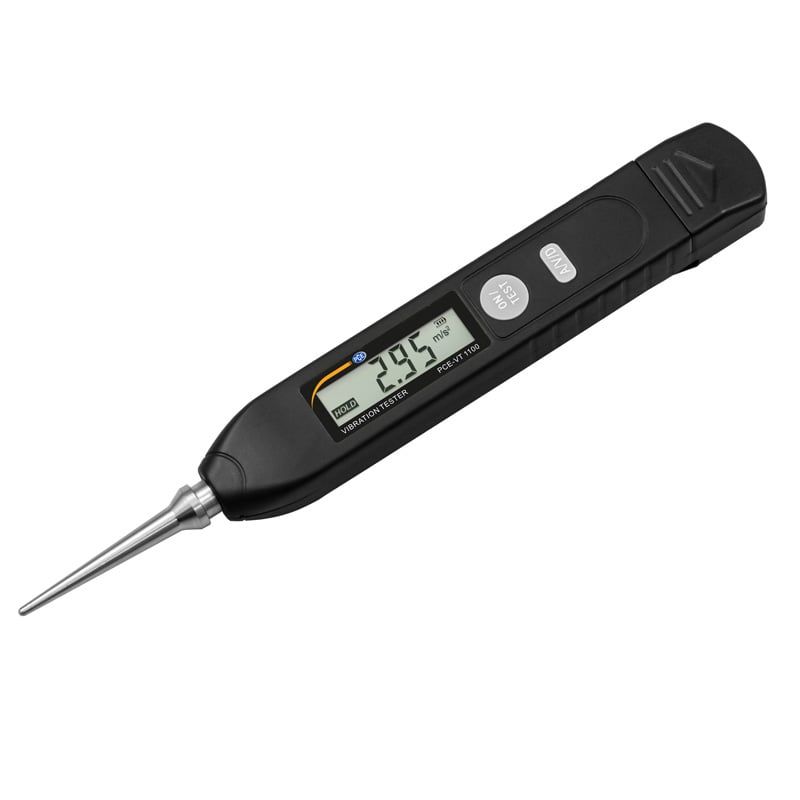

PCE-VT 1100S Titreşim Ölçüm Cihazı
Ürüne Genel Bakış :

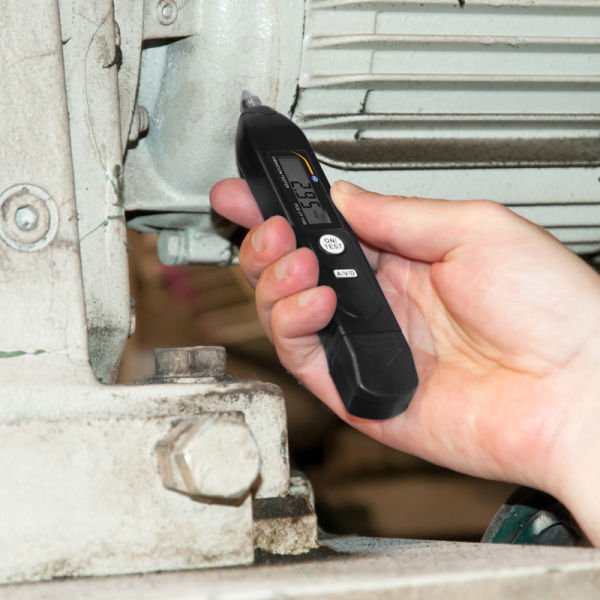

The vibration meter is used as a hand-held measuring device for the individual assessment of vibration on machines and systems. With the help of this vibration meter the actual state can easily be determined on-site. Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can also be assessed. Thus, the vibration meter serves as a measuring device for a relative measurement on different machines.
The vibration meter is essentially for precautionary or preventive maintenance of production machines. This vibration meter is used for rapid measurement of imbalance and for checking bearing and gear conditions. Very often, the vibration meter is also used to assess the status of smaller electric motors.
Ürünün Genel Özellikleri :
- Measures speed, distance, acceleration
- Keeps the value after every measurement
- Easy to handle and powered by batteries
- Wide frequency range
- Automatic shut-down after 20 seconds of inactivity to protect battery life
- Battery level indicator
Ürünün Teknik Özellikleri :
| Parameter | Measuring Range | Frequency Range |
| Acceleration | 0.01 ... 199.9 m/s² peak | 10 Hz ... 1 kHz |
| Vibration speed | 0.01 ... 199.9 mm/s rms | 10 Hz ... 1 kHz |
| Displacement | 0.001 ... 1.999 mm p-p | 10 ... 500 Hz |
| Measurement accuracy | Acceleration: ≤ 3% Vibration speed: ±5%, ±2 Digits Displacement: +10/-20% (10...20 Hz); ±5% (20...1000 HZ) |
|
| General specifications | ||
| Display | LCD, Response time approx. 1 second | |
| Power supply | 2 x 6 V CR2032 button cell | |
| Battery life | about 5 hours (in continuous operation) | |
| Environmental conditions | 0 ... 40°C / 32 ... 104°F, 0 ... 84% r.H. | |
| Dimensions | 155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7 in | |
| Weight | ca. 40 g (incl. batteries) / 1.4 oz | |

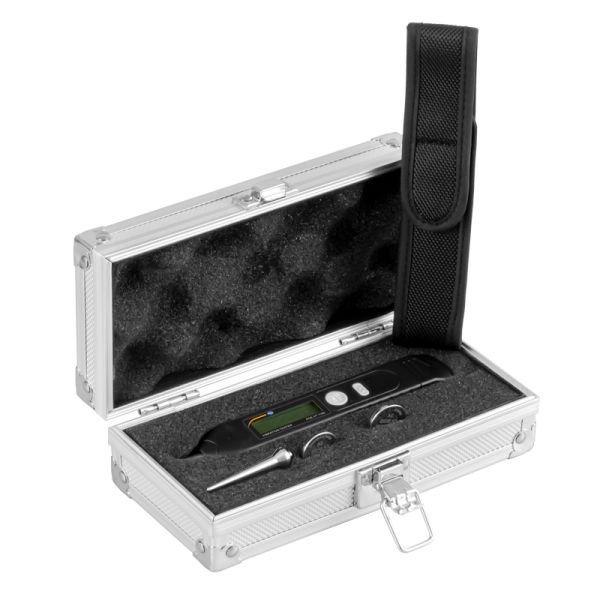

Teslimat İçeriği:
1 x Vibration Meter PCE-VT 1100S

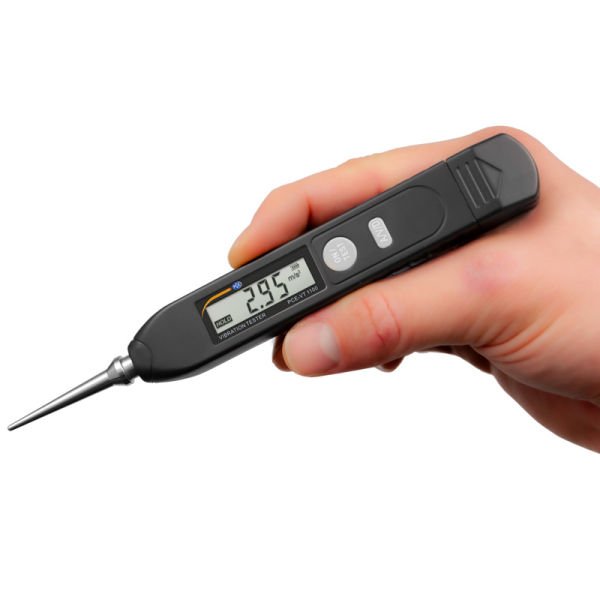

1 x PCE-VT-NF-45 needle probe (length 45 mm / 1.77")
2 x Batteries
1 x Carrying case
1 x Storage box
1 x User manual
