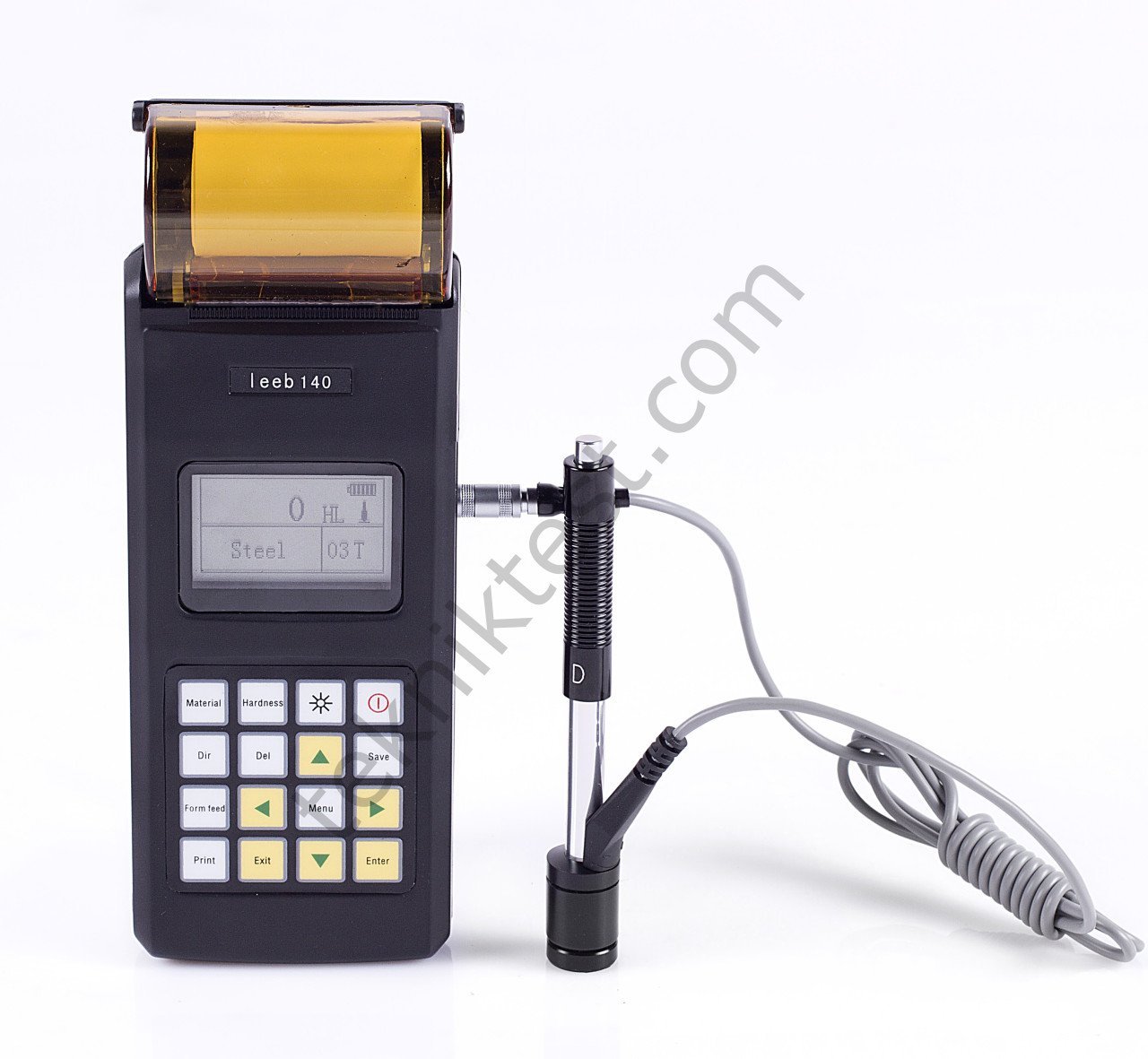

Leeb 140 Leeb Sertlik Ölçüm Cihazı
Ürünün Genel Özellikleri:
English menu, convenient and easy for operation.
Hardness standards HL,HRB,HRC,HB,HV,HS can be used,
free conversion between different standards
Can calibrate HL,HRC,HB.
On the basis of Leeb hardness measurement principle,
can be used to detect a variety of metal materials for accurate and stable measurement value.
Automatically identify the 8 types of impact devices, replacing without re-calibration.
Small, portable, and accurate. Suitable for harsh operating environment,
anti vibration, shock and electromagnetic interference.
Large screen LCD display with brightness LED back-light, convenient operation in the dark
Built-in thermal printer can print the measurement data immediately
Low power consumption: Auto sleep, automatic shutdown function of saving energy
Fully enclosed metal shell, strong anti-interference ability
Ordinary alkaline battery, standby time 150 hours, suitable for field operation
Application Fields:
The bearings and other parts, heavy workpieces, metal material,
pressure vessel, failure analysis of turbine generator unit and equipment
Mechanical or permanent assembly components have been installed,
the test space is very narrow, requires the original record regular test results
Large workpiece within a wide range of more rapid test measurement site
Measuring Materials:
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron,
nodular cast iron, cast aluminum alloy, copper zinc alloys (brass),
an alloy of copper and tin, copper (bronze), forged steel
Ürünün Teknik Özellikleri :
Model |
Leeb140 |
Ölçüm aralığı |
(170-960) HLD, (17.9-69.5) HRC, (19-683) HB, (80-1042) HV, (30.6-102.6) HS, (59.1-88) HRA, (13.5-101.7) HRB |
Sertlik parametresi |
HL, HRC, HRB, HS, HB, HV |
Doğruluk |
± Içinde. 5% (HLD = 760) |
Ekran |
Arka ışıklı LCD |
Bellek |
1250 grup |
PC bağlantısı |
Mevcut |
Yazıcı |
Dahili yüksek hızlı termal yazıcı |
Pil |
6 V şarj edilebilir lityum pil, USB |
Çalışma sıcaklığı |
-20 ila + 60Santigrat derece |
Boyutlar |
230 × 86 × 46mm |
Kabuk |
Plastik
D tipi (standart), isteğe bağlı DC, DL, D + 15, G, C, E |
Darbe cihazı tipi |
|
Ağırlık |
400g |
Standart teslimat |

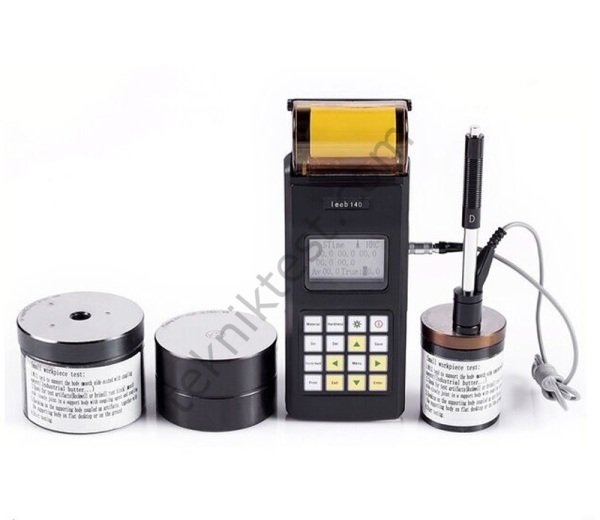

Ana ünite, darbe cihazı tipi D, kullanım kılavuzu, güç adaptörü, Küçük destek halkası, temizleme fırçası, yüksek blok ve sertifika, Piller, kalibrasyon sertifikası ile Test bloğu |
Opsiyonel aksesuarlar |
Darbe DC, D + 15, DL, G, C, E, şekilli destek halkası, baskı için kağıt |
