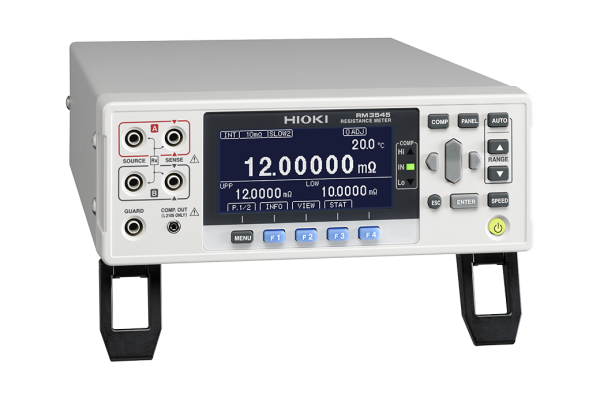

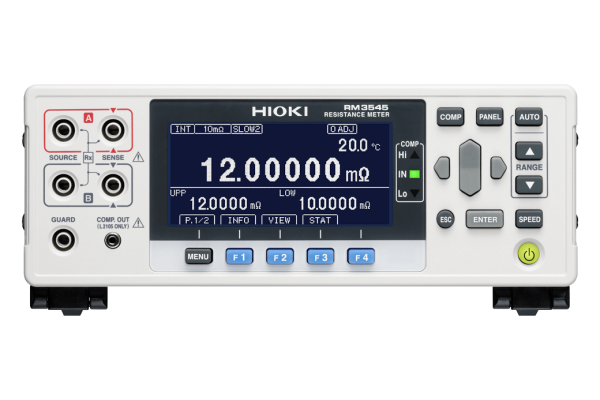

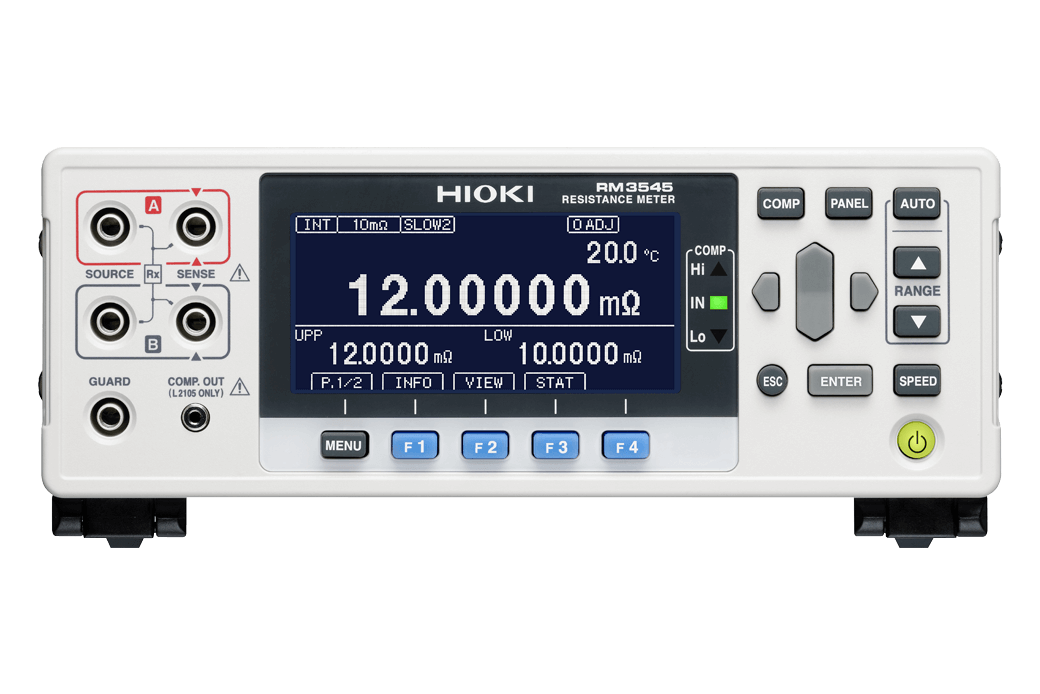

Hioki RM3545 Masa Tipi Rezistans Metre
Ürüne Genel Bakış :
|
Hioki DC direnç ölçüm cihazları, yüksek hassasiyet seviyesinde geniş bir direnç değerleri aralığını ölçer. RM3545, motorların ve transformatörlerin sargı direncini test etmek için gelişmiş araştırma ve üretimdeki uygulamaları karşılayan süper yüksek hassasiyetli, çok kanallı özellikli direnç ölçerlerdir; güç rölelerinin, anahtarların ve konektörlerin temas direnci; ve sinyal rölelerinin ve manyetik parçaların direnci. |
Ürünün Genel Özellikleri :
-
RM3545-01
-
-
-
-
Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3545 is super-high-precision, multichannel-capable resistance meters that meet applications in advanced research and production for testing winding resistance of motors and transformers; contact resistance of power relays, switches, and connectors; and resistance of signal relays and magnetic parts.
Product Video
Key Features
- 0.006% basic accuracy, 0.01 μΩ max. resolution, 1A max. testing current
- Measure from 0.00 μΩ (testing current 1 A) to 1200 MΩ
- Multiplexer Unit Z3003 (option) provides 20-channels of 4-terminal measurements for a complete assessment of multi-point signals (RM3545-02 only)
- Low-power resistance measurement with an open voltage not exceeding 20 mV
- High-speed, comprehensive productivity support delivers decisions in as little as 2.0 ms from start to finish
How to Use Resistance Meters: Measuring Contact Resistance with the Low Power Resistance Function
IEC standards define the method by which to measure the contact resistance of connectors and relays used for very low signals. The Hioki RM3545 Resistance Meter meets those standards with its low power resistance function, also known as the dry circuit test. To reduce the effects on any deteriorating contact surface, the open terminal voltage is capped at 20mV, while the maximum measurement current never exceeds 1mA, delivering the ideal testing environment for measuring contact resistance from the 0.1μΩ to 1kΩ range.
How to Use Resistance Meters: Compensating for the Effect of Electromagnetic Force
When measuring low resistance, due to the voltage generated when different metals come into contact with one another (known as electromagnetic force, or EMF), the measurement values can be unstable. The Hioki RM3545 is built in with an Offset Voltage Compensation (OVC) function to correct for the effects of EMF, making the instrument ideal for measuring low resistance of the welding points of busbars.
Verify the Quality of the Battery by Seeing the Resistance of Battery Tab Welding and Busbars
Verify the quality of the battery by seeing the resistance of battery tab welding and busbars.
Discover energy loss to improve your batteries.
The RM3545 allows you to identify defective welding that causes increased resistance at junctions, causing greater heat/energy loss during charging and recharging.
*Watch with the video subtitles on, to see detailed descriptions.
Improve Productivity by Increasing the Number of Inspection Channels
Combined with the SW1001/SW1002 switch mainframes, the number of measurement channels can be increased up to 132 channels, enabling scan measurements.
Basic specifications
Accuracy guaranteed: 1 year
| Resistance range | 10 mΩ (12.00000 mΩ display Max., 10 nΩ resolution) to 1000 MΩ range (1200.0 MΩ display Max., 100 kΩ resolution), 12 steps [LP ON] 1000 mΩ (1200.00 mΩ display Max., 10 µΩ resolution) to 1000 Ω range (1200.00 Ω display Max., 10 mΩ resolution), 4 steps Measurement accuracy: ±0.006 % rdg. ±0.001 % f.s. |
|---|---|
| Testing current | 1 A DC to 1 µA or less [LP ON] 1 mA to 5 μA DC |
| Open-terminal voltage | 20 V DC (10 kΩ range or more), 5.5 V DC max. (1000 Ω range or less) [LP ON] 20 mV DC max. |
| Temperature measurement | -10.0°C to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2001 and RM3545 combined accuracy), -99.9°C to 999.9°C (analog input) |
| Measurement speed | FAST (2.2ms) / MED (50Hz: 21ms, 60Hz: 18ms) / SLOW1 (102ms) / SLOW2 (202ms) |
| Functions | Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/ REF%), BIN, key-lock (OFF, menu lock, all lock), display digit count selection function (7- digit/ 6-digit/ 5-digit), automatic power supply frequency settings (AUTO/ 50Hz/ 60Hz), scaling, judgment sound setting, auto hold, averaging, statistical calculations, panel store/panel load, D/A output. |

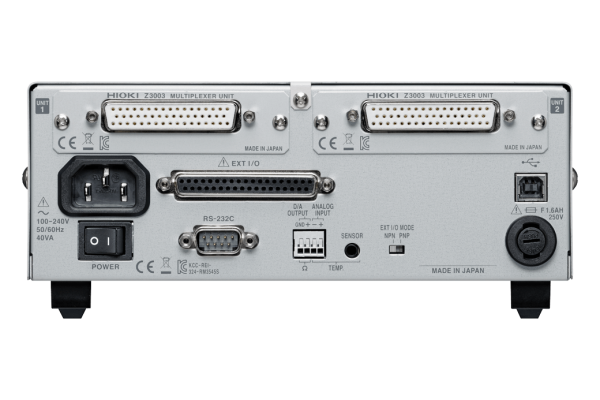

| Multiplexer | [Only RM3545-02] Support Unit: Z3003 (Install up to 2 units) |
| Communication interfaces | Select from GP-IB (RM3545-01 only), RS-232C, Printer (RS-232C), or USB . Remote function, communications monitor function, data output function, memory (50) |
| Power supply | 100 V to 240 V AC, 50 Hz/60 Hz, Rated power consumption: 40 VA max. |
| Dimensions and mass | 215 mm (8.46 in) W × 80 mm (3.15 in) H × 306.5 mm (12.07 in) D [RM3545/RM3545-01] 2.5 kg (88.2 oz), [RM3545-02] 3.2 kg (35.3 oz) |
| Included accessories | Power cord ×1, Clip type lead L2101 ×1, temperature sensor Z2001 ×1, Male EXT I/O connector ×1, Instruction manual ×1, Application disc ×1, USB cable (A-to-B type) ×1, Spare fuse ×1 |
