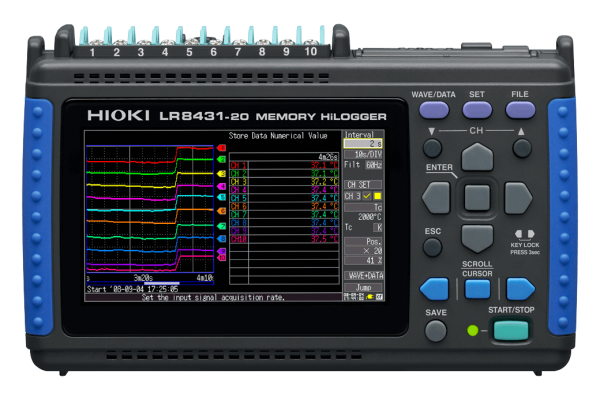

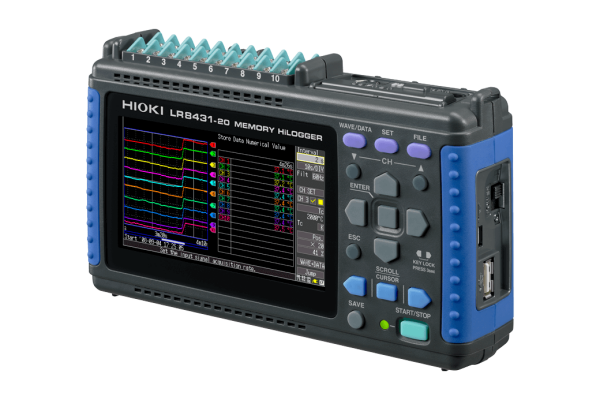

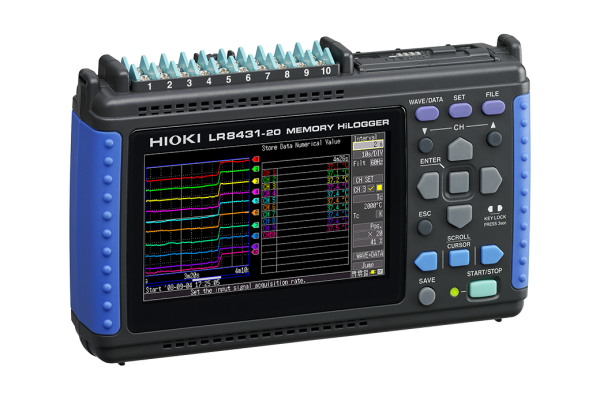

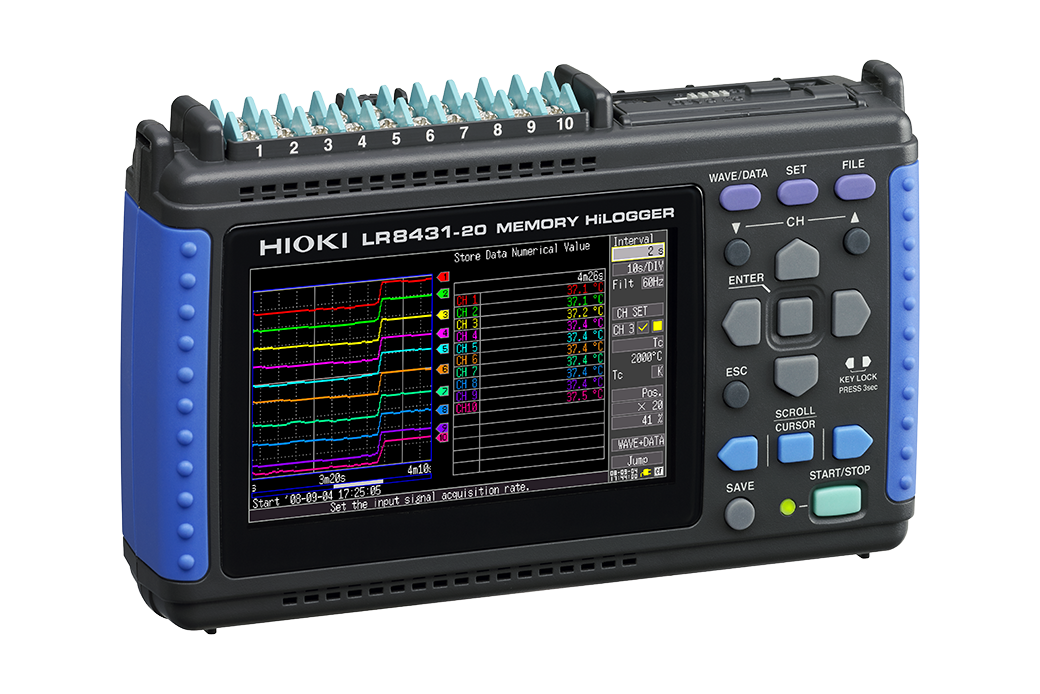

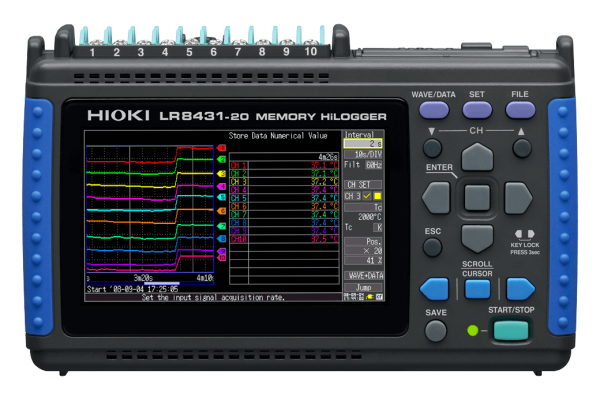

Hioki LR8431 10 Kanal Datalogger

• 10 izole kanal, 10 ms’ye kadar kayıt
• CF karta veya USB belleğe gerçek zamanlı kayıt
• DC voltaj, sıcaklık, kümülatif darbe ve dönüş ölçümü sağlayan el tipi veri kaydedici
• Voltaj : ±100 mV - ±60 V, 1-5V f.s. 6 aralık, Maks. çözünürlük 5µV
• Sıcaklık (termokupl) : -200 ˚C ila 1800 ˚C (sensöre bağlıdır), 1 aralık (K, J, E, T, N, R, S, B), Maks. çözünürlük 0.1 ˚C
• Toplam darbeler: 0 ila 1000M darbe, 1 aralık (Gerilimsiz 'a' kontağı, açık kollektör veya voltaj girişi), Maks. çözünürlük 1 darbe
• Dönme sayısı : 0 ila 5000/n (r/s) f.s. 1 aralık (voltajsız 'a' kontağı, açık kollektör veya voltaj girişi), Çözünürlük 1/n (r/s) Not: n = dönüş başına darbeler (1 ila 1.000)


Hioki Memory HiLoggers are high-speed data loggers for recording multiple chanels of voltage, temperature, pulse or rotation signals, providing complete isolation between channels and strong noise resistance . The LR8431 logs data at 10ms speeds across 10 channels simultaneously, and features a bright color LCD for crystal clear waveform displays.

Key Features

• Record measurement data on a USB flash drive for easy transfer to a computer
• Record to reliable Compact Flash cards during long-term measurement applications for increased peace of mind
• Replace storage media during real-time recording
• Improved thermocouple measurement accuracy and reference junction compensation accuracy
• Ten isolated analog input channels
• 10 ms sampling and recording across all channels
• Noise-resistant measurement circuitry for improved readings
• Ultra-compact for convenient portability
• Widescreen, bright LCD gives excellent viewability

Model No. (Order Code)

This compact logger excels in a broad range of settings, from production lines to research and development

For applications such as
- Evaluating motors and inverters used in electric and hybrid vehicles
The LR8431-20 enables stable, low-noise measurement of high-speed, high-resistance targets.

- Efficiency measurement and performance evaluation of air conditioning equipment
The LR8431-20 supports simultaneous, multi-point measurement, for example of input and output at multiple air conditioning registers or the temperature of internal components.

- Temperature measurement and performance evaluation of internal components in electronic equipment
Used with a wind velocity converter, the LR8431-20 can measure cooling efficiency inside equipment enclosures.

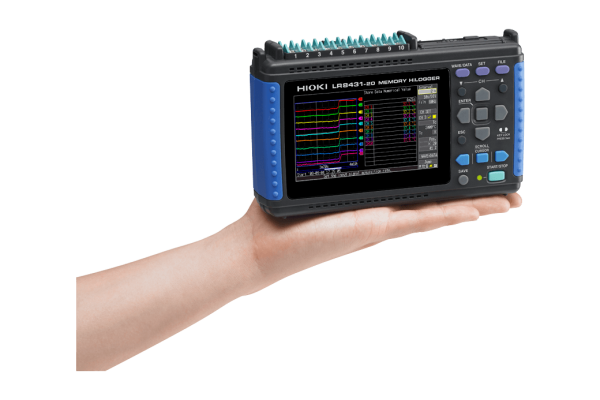

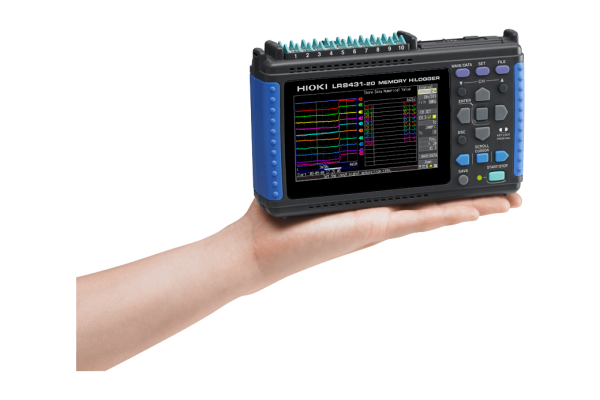

10-channel logger still fits in the palm of your hand

Ultra-compact for convenient portability.

There’s no need to worry about differing potentials of measurement objects when measuring temperature and voltage.
All ten analog channels are isolated.
Even when measuring temperature and voltage at the same time, interchannel interference and electric shock hazards are eliminated.
The four pulse channels are ideal for counting revolution pulses to measure rotation speed. (Pulse inputs share common ground.)

*Isolation between channels is possible through the use of semi-conductor relays.
Voltage exceeding the product specifications, such as that originating from lightning surges or other sources, should never be applied between each channel; otherwise the relays will short and the recorder will be damaged.

A data logger with a 10 ms sampling and recording across all channels

Abrupt changes in load need to be measured during development of EV, HV, PHV for which multi-channel, 10 ms sampling is essential.
This Memory HiLogger can track waveforms that could not be followed with the 100 ms sampling interval previously available.

Featuring USB flash drive and CF card support

The LR8431-20 can record measurement data on a USB flash drive for easy transfer to a computer.
In long-term measurement applications, it can also record to reliable Compact Flash cards for increased peace of mind.

Replace storage media during real-time recording.
Switch out fully loaded storage media with new ones while recording without stopping the measurement so that you can analyze any data recorded so far.

* During high-speed recording, be sure to insert the new storage media within 2 minutes of removing the former.
*Use only HIOKI CF cards, which are manufactured to strict industrial standards, for long-term storage of important data. Operation of non-HIOKI CF cards is not guaranteed.

Included PC application with measurement and analysis functionality

The supplied Logger Utility software enables processing of measurement data on a PC.

Use the supplied Logger Utility software to record data on a PC in real-time.
View past data during recording.

Connect the PC to the HiLOGGER using USB.

Basic specifications

Accuracy guaranteed: 1 year
