Fuji Electric 7MBR50VN120-50 igbt Modül
0,00 TL
Features
- EconoPIM™ module
- Low VCE (sat)
- Compact package
- PCB mounting module

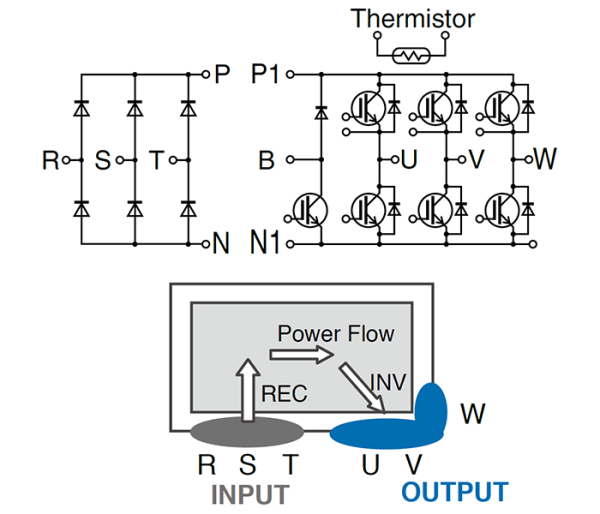

- Converter diode bridge dynamic brake circuit
Applications
- Inverters
- NC Servos
- UPS
Specifications
| Configuration | PIM |
|---|---|
| Series | V Series (6th-Generation) |
| Inverter VCES(V) | 1200 |
| Inverter IC(A) | 50 |
| Inverter,Brake Tvj max(℃) | 175 |
| Inverter,Brake Tvjop max(℃) | 150 |
| Converter Tvj max(℃) | 150 |
| Converter Tvjop max(℃) | 150 |
| Tc(℃) Detail | 125 |
| Tstg(℃) Detail | -40 to 125 |

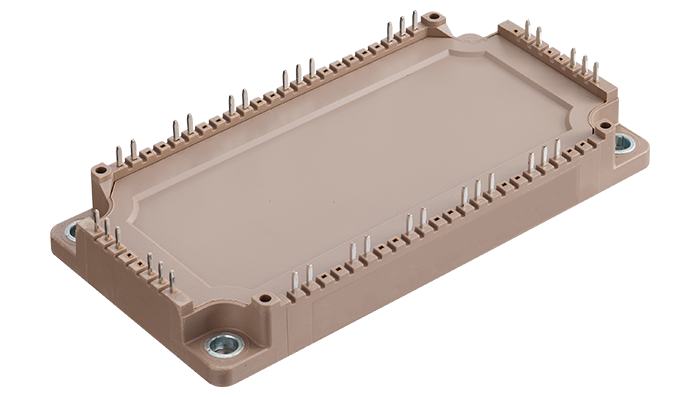

| Package | M720 |

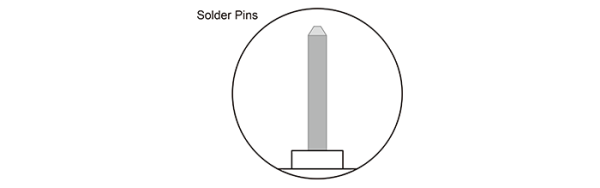

| Terminal type | Solder pins |
| Size width (mm) | 62 |
| Size length (mm) | 122 |
| Net mass (Grams) | 310 |
Documentation Tools
| Application Manuals |
IGBT Modules 6th Generation V series |
|---|---|
| Mounting Instructions | Mounting Instructions |
| Technical Documents | V Series Common |
| Selection Guide | IGBT/SiC Devices Selection Guide |
| Simulator |
Fuji IGBT Simulator Fuji IGBT Simulator (Online Version) |
| Evaluation Boards | Evaluation Boards |
