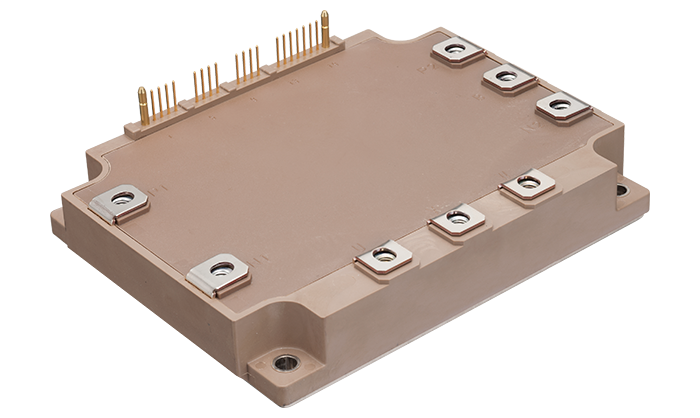

Fuji Electric 7MBP150XEN120-50 igbt Modül
0,00 TL
Features
- Low loss
- Overheat protective function
- High reliability
Applications
- Air Conditioner
- NC / Servos
- Inverters
Specifications

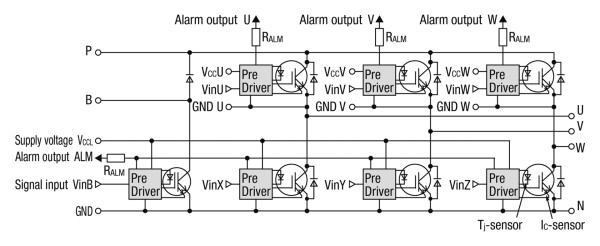

| Configuration | IPM |
|---|---|
| Series | X series (7th-Generation) |
| Inverter VCES(V) Detail | 1200 |
| Inverter IC(A) Detail | 150 |
| Inverter VCE(sat)(V) Detail | TBD |
| Control VCC(V) Detail | 15 |
| Control IOC[INV](A) Detail | 225 |
| Control VUV(V) Detail | 12.5 |
| Control TjOH(℃) Detail | 175 |
| Alarm signal hold time OC(ms) Detail | 2 |
| Alarm signal hold time UV(ms) Detail | 4 |
| Alarm signal hold time TjOH(ms) Detail | 8 |
| Package | P631 |
| Size width (mm) | 110 |
| Size length (mm) | 142 |
| Net mass (Grams) | 940 |
Documentation Tools
| Product introduction | 7th-Generation IPM X Series |
|---|---|
| Application Manuals | IGBT Modules |
| Technical Documents | IGBT Module Technical Documents |
| Selection Guide | IGBT/SiC Devices Selection Guide |
| Simulator |
Fuji IGBT Simulator Fuji IGBT Simulator (Online Version) |
