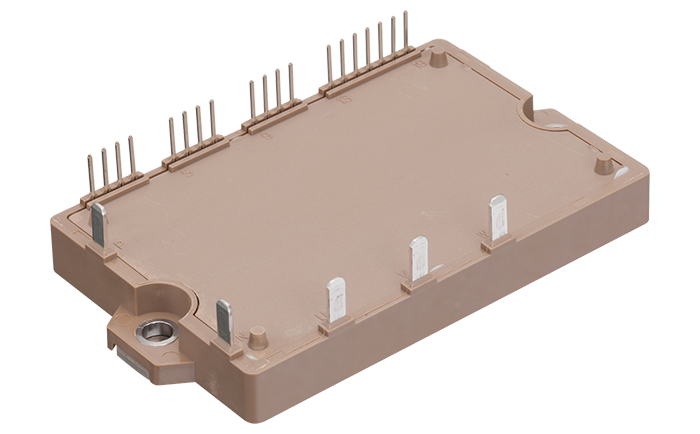

Fuji Electric 6MBP25VBA120-50 igbt Modül
0,00 TL
emImg">
- Air Conditioner
- NC / Servos
- Inverters
Specifications

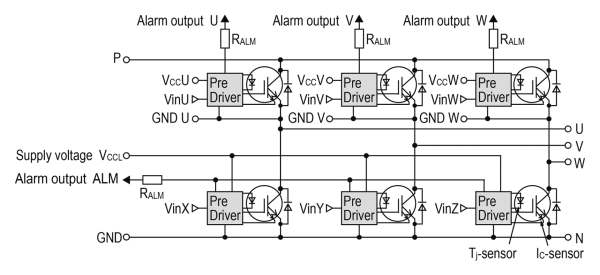

| Configuration | IPM |
|---|---|
| Series | V series (6th-Generation) |
| Inverter VCES(V) Detail | 1200 |
| Inverter IC(A) Detail | 25 |
| Inverter VCE(sat)(V) Detail | 1.7 |
| Control VCC(V) Detail | 15 |
| Control IOC[INV](A) Detail | 38 |
| Control VUV(V) Detail | 12.5 |
| Control TjOH(℃) Detail | 150 |
| Alarm signal hold time OC(ms) Detail | 2 |
| Alarm signal hold time UV(ms) Detail | 4 |
| Alarm signal hold time TjOH(ms) Detail | 8 |
| Tvj max(℃) Detail | 150 |
| Tc(℃) Detail | -20 to 110 |
| Tstg(℃) Detail | -40 to 125 |
| Package | P626 |
| Size width (mm) | 50.2 |
| Size length (mm) | 87 |
| Net mass (Grams) | 100 |
Documentation Tools
| Application Manuals | IGBT Modules |
|---|---|
| Technical Documents | IGBT Module Technical Documents |
| Selection Guide | IGBT/SiC Devices Selection Guide |
| Simulator |
Fuji IGBT Simulator Fuji IGBT Simulator (Online Version) |
