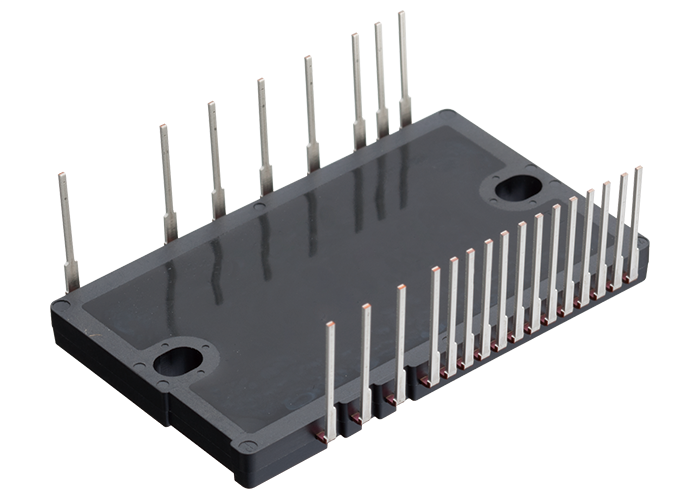

Fuji Electric 6MBP20XSD060-50 igbt Modül
0,00 TL
Features
- Overcurrent protective function
- Temperature output function
- Low input voltage protective function
- Alarm output function
- Input signal Active logic and Voltage level (3.3/5V)
Applications
- Air Conditioner
- NC / Servos
- Inverters

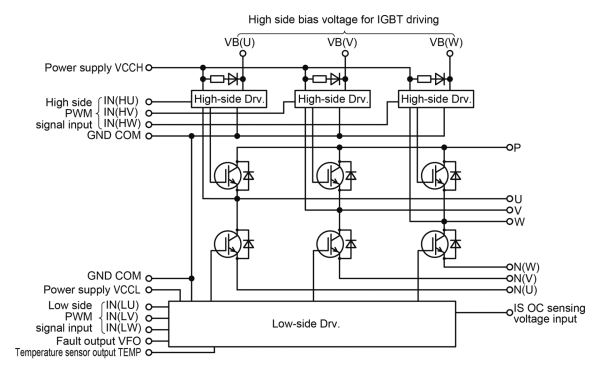

Specifications
| Configuration | IPM |
|---|---|
| Series | X series (7th-Generation) |
| Inverter VCES(V) Detail | 600 |
| Inverter IC(A) Detail | 20 |
| Inverter Tvj max(℃) | 175 |
| Inverter Tvjop max(℃) | -40 to 150 |
| Control VCCL, VCCH, VB (V) | 15 |
| Control Boot-strap Diode | Built-in |
| Control Input signal Acive logic and Voltage level | High(3.3/5V) |
| Protective function UV, VCCL, VCCH, VB (V) | P&N-side |
| Protective function OC | N-side |
| Protective function Vtemp | N-side |
| Protective function TOH | - |
| Protective function Alarm output | N-side(UV,OC) |
| Tc(℃) Detail | -40 to 125 |
| Tstg(℃) Detail | -40 to 125 |
| Package | P633A |
| Size width (mm) | 26 |
| Size length (mm) | 43 |
| Net mass (Grams) | 9.3 |
Documentation Tools
| Product introduction | 2nd Generation Small IPM X Series |
|---|---|
| Application Manuals | Small IPM X Series |
| Mounting Instructions | IGBT Module Mounting Instructions |
| Technical Documents | Small IPM X Series Common |
| Selection Guide | IGBT/SiC Devices Selection Guide |
| Simulator |
Fuji IGBT Simulator Fuji IGBT Simulator (Online Version) |
