Fuji Electric 4MBI600VB-170R2-50 igbt Modül
0,00 TL
Features
- High efficiency
- T-type
- RB-IGBT
- Low inductance
Applications
- Inverters
- UPS
- Wind Power Generation
- Solar
Specifications

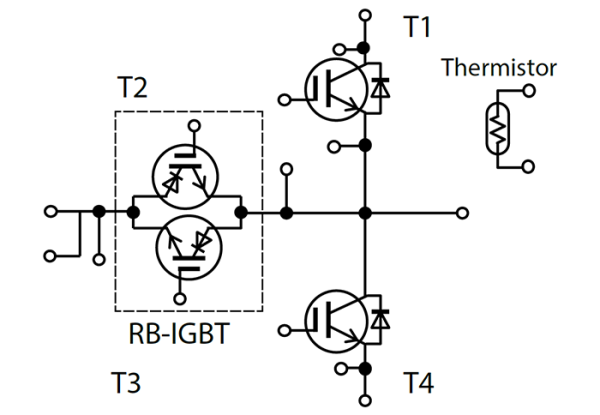

| Configuration | 3-level 1-leg T-type |
|---|---|
| Series | V series (6th-Generation) |
| Inverter(T1, T4) VCES(V) | 1700 |
| Inverter(T1, T4) IC(A) | 600 |
| Inverter(T1, T4) Tvj max(℃) | 175 |
| Inverter(T1, T4) Tvjop max(℃) | 150 |
| AC-switch(T2, T3) VCES(V) | ±1200 |
| AC-switch(T2, T3) IC(A) | 600 |
| AC-switch(T2, T3) Tvj max(℃) | 150 |
| AC-switch(T2, T3) Tvjop max(℃) | 125 |
| Tc(℃) Detail | 125 |
| Tstg(℃) Detail | -40 to 125 |

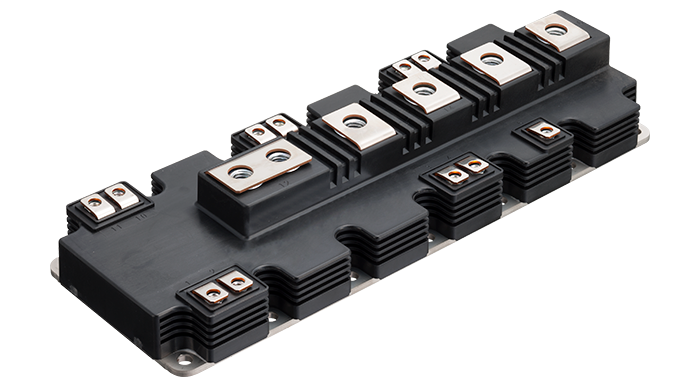

| Package | M404 |
| Size width (mm) | 89 |
| Size length (mm) | 250 |
| Net mass (Grams) | 1300 |
Documentation Tools
| Application Manuals |
IGBT Modules 6th Generation V series 3-Level Modules |
|---|---|
| Mounting Instructions | IGBT Module Mounting Instructions |
| Technical Documents | Advanced NPC 3-Level Inverter Modules |
| Selection Guide | IGBT/SiC Devices Selection Guide |
| Simulator |
Fuji IGBT Simulator Fuji IGBT Simulator (Online Version) |
| Evaluation Boards | Evaluation Boards |
