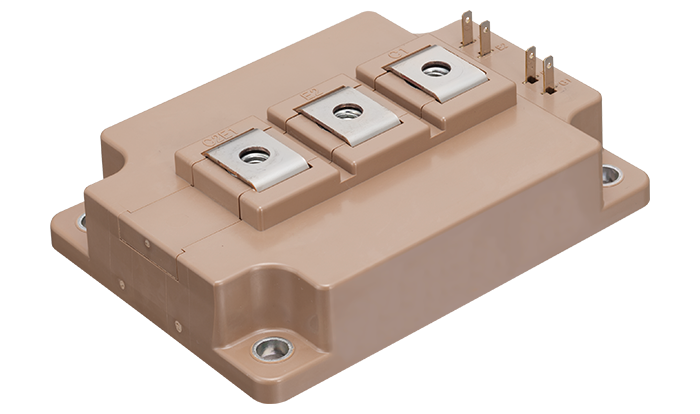

Fuji Electric 2MBI600XEE065-50 igbt Modül
0,00 TL
Features
- Low VCE (sat)
- Fast switching
- Low inductance module structure
Applications
- Inverters
- NC Servos
- UPS
Specifications
| Configuration | 2-Pack |
|---|---|
| Series | X series (7th-Generation) |
| VCES(V) Detail | 650 |
| IC(A) Detail | 600 |
| Tvj max(℃) Detail | 175 |
| Tvjop max(℃) Detail | 175 |
| Tc(℃) Detail | 125 |
| Tstg(℃) Detail | -40 to 125 |
| Package | M277 |
| Size width (mm) | 80 |
| Size length (mm) | 110 |
| Net mass (Grams) | 470 |
Documentation Tools
| Product introduction | 7th Generation IGBT Module X Series |
|---|---|
| Application Manuals |
IGBT Modules 7th Generation X-series |
| Mounting Instructions | IGBT Module Mounting Instructions |
| Technical Documents | X series Common |
| Selection Guide | IGBT/SiC Devices Selection Guide |
| Simulator |
Fuji IGBT Simulator Fuji IGBT Simulator (Online Version) |
