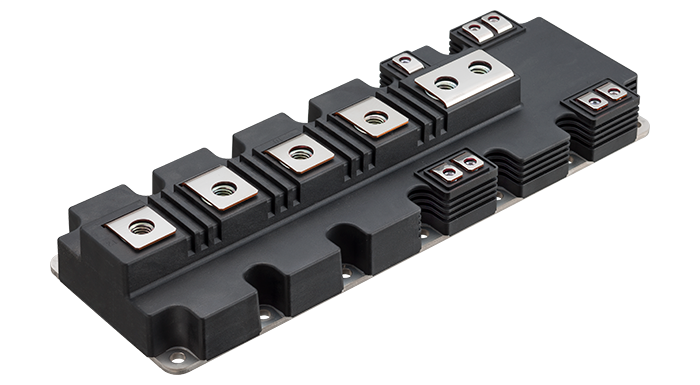

Fuji Electric 2MBI1400XXB120P-50 igbt Modül
0,00 TL
Features
- PrimePACK™ module
- Low VCE (sat)
- Low inductance module structure
Applications
- Inverters
- NC Servos
- UPS
- Wind Power Generation
- Solar
Specifications

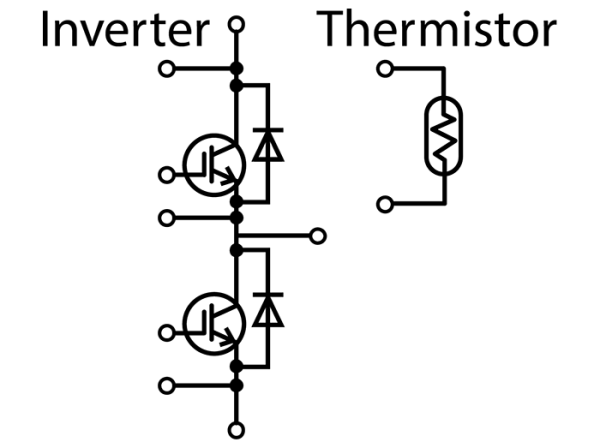

| Configuration | 2-Pack |
|---|---|
| Series | X series (7th-Generation) |
| VCES(V) Detail | 1200 |
| IC(A) Detail | 1400 |
| Tvj max(℃) Detail | 175 |
| Tvjop max(℃) Detail | 175 |
| Tc(℃) Detail | 150 |
| Tstg(℃) Detail | -40 to 150 |
| Package | M272 |
| Size width (mm) | 89 |
| Size length (mm) | 250 |
| Net mass (Grams) | 1250 |
Documentation Tools
| Product introduction |
7th Generation IGBT Module X Series 7th Generation X Series PrimePACK™ |
|---|---|
| Application Manuals |
IGBT Modules 7th Generation X-series |
| Mounting Instructions | IGBT Module Mounting Instructions |
| Technical Documents | X series Common |
| Selection Guide | IGBT/SiC Devices Selection Guide |
| Simulator |
Fuji IGBT Simulator Fuji IGBT Simulator (Online Version) |
